Description

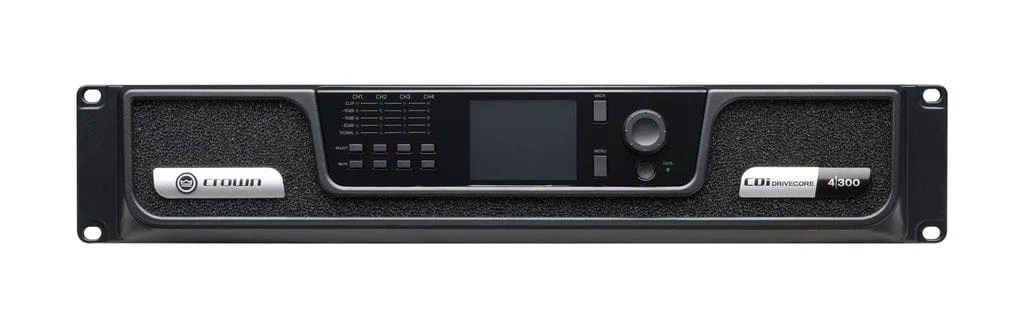

The 300W Crown Audio CDi 4|300 4-Channel DriveCore Series Power Amplifier with BLU Link utilizes technology derived from the flagship Crown DriveCore Install series amplifiers, providing an impressive mix of high-performance, rich feature set, and competitive cost. The CDi DriveCore 4|300 offers streamlined functionality for most small- to medium-sized installation such as restaurants, retail stores, and more.

The DriveCore integrated circuit eliminates hundreds of components within the amplifier, reducing the variability of component values and increasing reliability, resulting in remarkable audio fidelity from an efficient design. The 4-channel amplifier is simple to use and includes a network control & monitoring, an advanced DSP circuit, and an easy-to-use, front-panel interface. The amplifier is equipped with two BLU Link RJ45 connectors, which can receive and send 256 fault-tolerant audio channels.

Crown Audio CDI 4-300 Specs

Key Specs
Number of Channels
4
Amplifier Power Rating
300 W per Channel
1200 W Bridged
Load Impedance / Voltage
Stereo:
2 / 4 / 8 / 16 Ohms per Channel
70 / 100 V per Channel
Bridged:
4 / 8 / 16 Ohms
140 / 200 V
DSP
32-Bit Floating Point DSP at 96 kHz
Analog Audio I/O
2x Block 6-Pin Balanced Line Input
2x Barrier Strip 4-Pin Speaker Output
Digital I/O
1x RJ45 Ethernet Input/Output (Control)
2x RJ45 BLU-Link Input/Output (I/O)
Rackmount Size
2 RU
Amplifier Power Rating
300 W per Channel
1200 W Bridged
Load Impedance / Voltage
Stereo:
2 / 4 / 8 / 16 Ohms per Channel
70 / 100 V per Channel
Bridged:
4 / 8 / 16 Ohms
140 / 200 V
Performance
Protections
DC Fault, Low Impedance, Open Circuit, Overcurrent, Overvoltage, Ultrasonic, Undervoltage
Frequency Response
20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Damping Factor
> 1000
Input Sensitivity
Line:
0.7 Vrms to 2.5 Vrms / -.8 dBu to 10.2 dBu (at 8 Ohms)
1 Vrms to 3.5 Vrms / 2.2 dBu to 13.2 dBu (at 70 V)
1.4 Vrms to 5 Vrms / 5.2 dBu to 16.2 dBu (at 100 V)
Input Impedance
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
Max Gain
34 dB (at 4 Ohms, at 8 Ohms, at 70 V, at 100 V)
Max Input Level
+20 dBu
SNR
> 104 dB
THD
0.35% (at Rated Power)
Intermodulation Distortion
≤ 0.35%
Crosstalk
> 80 dB (Below Rated Power)
Common Mode Rejection Ratio (CMRR)
> 70 dB
Signal Processing
DSP
32-Bit Floating Point DSP at 96 kHz
Audio Delay
Adjustable Up to 1000 ms per Channel
Crossover
High-Pass:
16 to 20 kHz, 12/24/48 dB/Octave Bessel
High-Pass:
16 to 20 kHz, 6/12/24/48 dB/Octave Butterworth
High-Pass:
16 to 20 kHz, 12/24/48 dB/Octave Linkwitz-Riley
Low-Pass:
16 to 20 kHz, 12/24/48 dB/Octave Bessel
Low-Pass:
16 to 20 kHz, 6/12/24/48 dB/Octave Butterworth
Low-Pass:
16 to 20 kHz, 12/24/48 dB/Octave Linkwitz-Riley
EQ
8-Band Parametric EQ per Channel
Limiting
Yes
Connectivity
Analog Audio I/O
2x Block 6-Pin Balanced Line Input
2x Barrier Strip 4-Pin Speaker Output
Digital I/O
1x RJ45 Ethernet Input/Output (Control)
2x RJ45 BLU-Link Input/Output (I/O)
USB I/O
No
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
AC Power Connector
1x IEC 15 A / NEMA 5-15
Current Consumption
120 VAC:
1.8 to 2.6 A (1/8 Power)
3.5 to 5 A (1/3 Power)
230 VAC:
1 to 1.4 A (1/8 Power)
1.8 to 2.8 A (1/3 Power)
Power Consumption
120 VAC:
127 to 160 W (1/8 Power)
166 to 239 (1/3 Power)
230 VAC:
141 to 173 W (1/8 Power)
180 to 239 (1/3 Power)
Physical
Display & Indicators
Front Panel:
1x Multi-Color Graphic LCD
Rackmount Size
2 RU
Cooling
Fan (Variable Speed)
Thermal Dissipation
814 BTU/hr (Maximum)
Dimensions
19.0 x 3.5 x 12.2″ / 48.3 x 8.9 x 31.1 cm
Weight
16.1 lb / 7.3 kg
