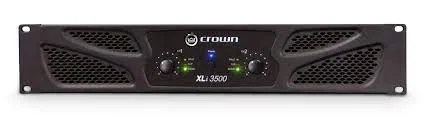

Designed for musicians, DJs, entertainers, houses of worship, discos, and other venues, the Crown XLi 3500 Stereo Power Amplifier feature both RCA and XLR inputs as well as speakON and binding post outputs. The amplifier includes a user-selectable input sensitivity of 0.755V or 1.4V, stereo/parallel-bridge-mono modes, power/fault/signal presence/clip LED indicators, forced-air cooling, and protection against shorts, no-load, on/off thumps, and interference from radio frequencies in the environment.
Crown Audio XLi 3500 Specs
Key Specs
Number of Channels
2
Amplifier Power Rating
4 Ohms: 2x 1350 W RMS per Channel (1 kHz, 0.5% THD) 8 Ohms: 2x 1000 W RMS per Channel (1 kHz, 0.5% THD) 8 Ohms: 1x 2700 W RMS Bridged (1 kHz, 0.5% THD)
Amplifier Class
Class-AB
Load Impedance / Voltage
4 / 8 Ohms per Channel
Analog Audio I/O
2x Binding Post Pair 1-Pin Speaker Output 2x speakON NL4 Speaker Output 2x XLR 3-Pin Female Balanced Line Input 2x RCA TS Unbalanced Line Input
Digital I/O
No
Rackmount Size
2 RU
Amplifier
Number of Channels
2
Amplifier Power Rating
4 Ohms: 2x 1350 W RMS per Channel (1 kHz, 0.5% THD) 8 Ohms: 2x 1000 W RMS per Channel (1 kHz, 0.5% THD) 8 Ohms: 1x 2700 W RMS Bridged (1 kHz, 0.5% THD)
Amplifier Class
Class-AB
Load Impedance / Voltage
4 / 8 Ohms per Channel
Performance
Protections
Circuit Breaker, On/Off Muting, RF, Reactive/Mismatched Load, Short Circuit, Thermal
Frequency Response
20 Hz to 20 kHz +0/-1 dB (at 1 W)
Damping Factor
> 200 at 8 Ohms
Input Sensitivity
0.78 or 1.4 V (at 8 Ohms)
Input Impedance
10 Kilohms (Unbalanced) 20 Kilohms (Balanced)
Max Gain
36 dB
SNR
> 100 dB
THD
< 0.5% (Full Range, Below Rated Power)
Intermodulation Distortion
< 0.35%
Crosstalk
-75 dB (Below Rated Power, 1 kHz) -59 dB (Below Rated Power, 20 kHz)
Slew Rate
> 10 V/μs
Crossover
Yes
Connectivity
Analog Audio I/O
2x Binding Post Pair 1-Pin Speaker Output 2x speakON NL4 Speaker Output 2x XLR 3-Pin Female Balanced Line Input 2x RCA TS Unbalanced Line Input
