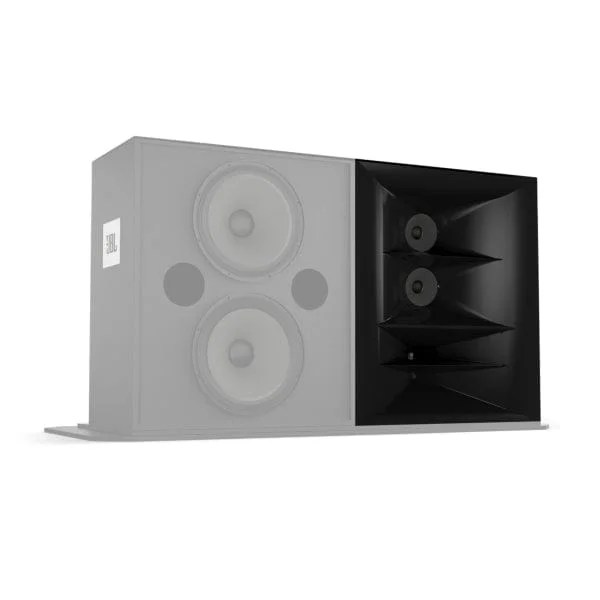

JBL 3733-M/HF Mid/HF Section for JBL 3733 Bi-Amplified ScreenArray Loudspeaker

The JBL 3733-M/HF Mid/HF Section for JBL 3733 Bi-Amplified ScreenArray Loudspeaker critical sound reproduction in cinemas utilizing a solid screen. The 3733 uses the 4739 LF for increased low frequency output. The M/HF utilizes Dual Dissimilar Arraying technology to shape the coverage pattern for the optimal use. In addition the horn design improves the frequency response and lowers distortion at higher output. The 2415-XP high frequency drivers represent JBL’s latest HF compression driver, designed to achieve higher output with lower harmonic distortion.

JBL 3733-M/HF High Frequency Section Specifications
– Mid Frequency Transducers: 2 x 165H, 165 mm (6.5 in) diameter, 38mm (1.5 in) voice coil
– High Frequency Transducers: 2 x 2415-XP, Dual Dissimilar Arraying configuration
– Nominal Impedance: 12 Ω
– Minimum Impedance: 10.2 Ω @ 12 kHz
– Free-Field Sensitivity: 104 dB, 2.83 V @ 1m (3.3 ft)
– Input Power Handling (AES 100-Hour Rating): 150 W (39.1 V)
– Input Power Handling (AES 2-Hour Rating): 200 W (45.2 V)
– Dimensions (H x W x D): 1000 mm x 762 mm x 450 mm (39.37 in x 30 in x 17.75 in)
– Net Weight: 23.2 kg (51 lb)
– Shipping Weight: 31.3 kg (69 lb)
