Description
Two-Way Full-Range Loudspeaker System with 1 x 15″ LF

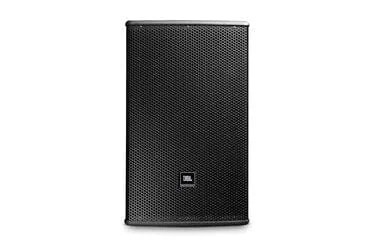

AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC599 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
Features
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
Specifications
| Frequency Range (-10dB) | 60 Hz – 20 kHz |
| Frequency Response (±3 dB) | 75 Hz – 18 kHz |
| System Sensitivity (1w @ 1m) | 98 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 122 dB (128 dB peak) |
| System Power Rating | 350W (1400W peak), 2 hrs (AES rated) 250W/500W/1000W (Continuous/Program/Peak) (IEC rated) |
| Coverage Pattern | 90° x 90° (H x V) |
| Crossover | 1.5 kHz |
| LF Driver | 1 x 15″ woofer (P/N: 5053935), 381 mm (15 in) driver with 38 mm (1.5 in) voice-coil |
| HF Driver | 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. |
| Suspension Attachment | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket |
| Crossover Modes | Passive |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
| Net Weight (each) | 19.7 kgs. (43.4 lbs.) |
