Description

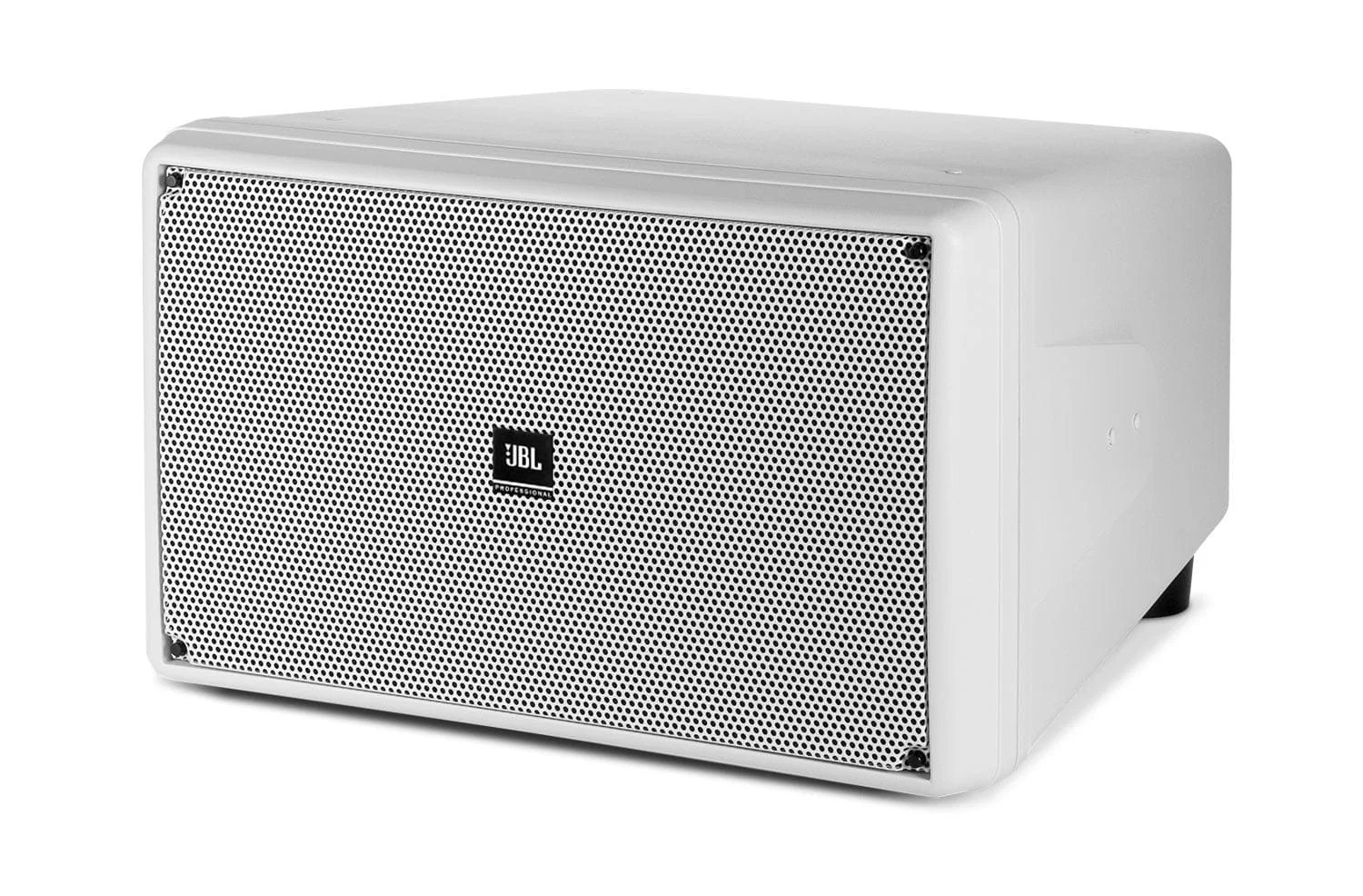

Dual 10†Compact Subwoofer
The Control SB2210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.
Features
- 2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers
- 500 Watts Power handling
- Frequency Response Down to 38 Hz
- 13 x M6 Insert Points Including Inserts for Optional U-Bracket
- Compact, Low Profile Design
Specifications
| Frequency Range (-10dB) | 38 Hz – 500 Hz |
| Frequency Response (-3 dB) | 48 Hz – 95 Hz |
| Power Rating | 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs) |
| Maximum Input Voltage | 60.0VRMS (2 hrs), 120V peak |
| Sensitivity | 95 dB, 1W @ 1m in half-space (2À loading, average 50 – 90 Hz) |
| Maximum SPL (1m) | 122 dB in half-space (2À loading) |
| Impedance | 8Ω |
| Minimum Impedance | 7.2Ω at 160 Hz |
| Recommended Filter | 45 Hz, 24 dB/oct high-pass filter |
| Drivers | Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring. |
| Enclosure | High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance. |
| Grille | Thermoset composite coated steel, zinc-plated, 3-layer foam backing. |
| Outdoor Capability | IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. |
| Input Connectors | Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection. |
| Safety Agency | ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876. |
| Colors | Black or white (-WH) |
| Dimensions (H x W x D) | 355 x 590 x 570 mm (14 x 23.3 x 22.5 in.) |
| Net Weight (each) | 23.31 kg (51.4 lb) |
| Shipping Weight | 25.85 kg (57.0 lb) |
| Included Accessories | 1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers. |
| Optional Accessories | MTC-210UB (&-WH) U-BracketMTC-SBT300 70V/100V Transformer, 300W multi-tap, installs onto inside of back input panel using included 4 studs.Transformer Taps:70V: 300W, 150W, 75W, 38W100V: 300W, 150W, 75W |
| Mounting Hardware | Optional U-bracket, insert points on top & bottom. |
| Coverage Angle | Omnidirectional |
