Description

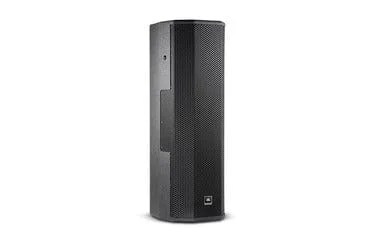

Dual 8″ 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology
The JBL Crossfired Waveguide Technology CWT128 is a compact full-range 2-way system designed to provide extremely wide-angle coverage with maximum bandwidth and SPL in a single system package. The unique wide coverage pattern horn is designed to provide seamless coverage to 160-degrees horizontally. CWT128’s small footprint makes the system ideal for nearly all architecturally sensitive environments, taking up about a third of the footprint of two speakers splayed side by side.
Features
- Seamless horizontal coverage across a full 160°
- Compact size and small footprint make it ideal for architecturally sensitive environments
- Dual 205 mm (8 in) LF transducers
- Extremely wide-coverage 160° x 60° waveguide
- Dual 25 mm (1″) exit, 38 mm (1.5″) diaphragm compression driver
- Easy to install with 4 M10 attachment points built in across the top and sides
- 4 M8 points on the back panel accept OmniMount® wall mounting brackets
- WRC and WRX weather resistant versions are available upon request
- CWT128 is available in white – WH
Applications
- Transportation Facilities
- Cinema
- Sports Facilities
- Theme Parks
ÂÂ
Specifications
| System Format | Extremely Wide Angle Coverage Dual 8″ 2-Way Loudspeaker System |
| Frequency Range (-10dB) | 71 Hz – 20 kHz |
| Frequency Response (±3 dB) | 96 Hz – 19 kHz |
| Coverage Pattern | 160° x 60° |
| Maximum SPL (1m) | 129 dB |
| System Nominal Impedance | 8 Ohms |
| Long-Term System Power Rating | 450W (1800W Peak) |
| System Power Rating | 850W/1700W/3400W Continuous/Program/Peak |
| Crossover | 1.5 kHz |
| LF Driver | 2 x JBL 228J, 205 mm (8 in) SFGâ„¢ driver with 64 mm (2.5 in) edge wound voice coil |
| HF Driver | 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil |
| High-Frequency Waveguide | Crossfired Waveguide |
| Finish | Black DuraFlexâ„¢ finish. White (-WH) available upon request |
| Dimensions (w x h x d) | 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in) |
| Net Weight (each) | 18.6 kg (40.9 lb) |
| Crossover Modes | Passive |
| System Sensitivity (1w @ 1m) | 94 dB SPL |
| Nominal LF Driver Impedance | 8 Ohms |
| Transformer Taps | 70V: 110W, 55W, *28W 100V: 110W & 55W |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 4 x M10 (1 x M10 points, one top, one bottom, plus 1 x M10 point on each side panel.) 4 x M8 rear for MultiMount® MM-120-BT |
| Environmental | Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX. |
