Description

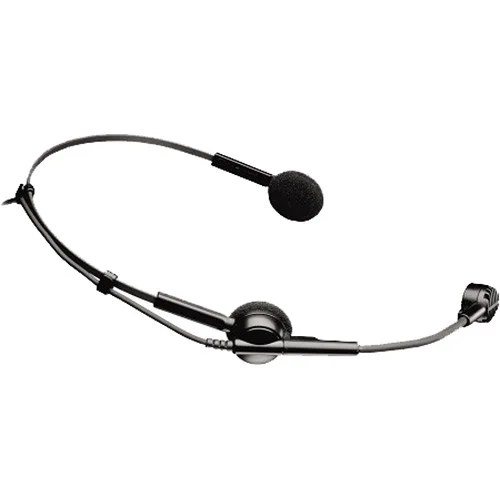

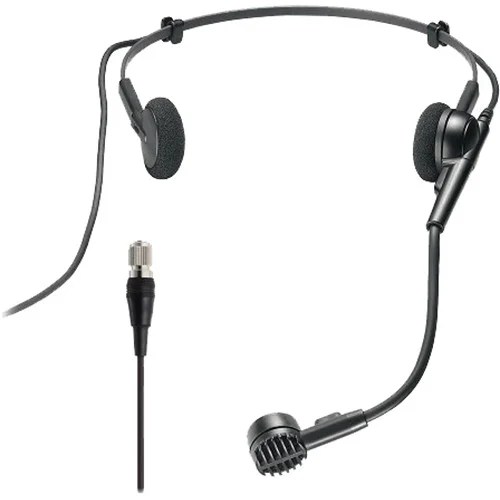

The ATM75C is a professional-quality headworn microphone featuring a cardioid polar pattern. It is designed to offer hands-free operation with excellent sound isolation, making it ideal for vocalists, speakers, and performers in various settings.

Key Features

• Microphone Type: Condenser
• Polar Pattern: Cardioid
• Frequency Response: 100 Hz to 13 kHz
• Sensitivity: -54 dB (1.9 mV) re 1V at 1 Pa
• Impedance: 200 ohms
• Maximum Input Sound Level: 126 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: 96 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 60 dB, 1 kHz at 1 Pa
• Connector: 4-pin connector designed for A-T UniPak® body-pack wireless transmitters

Design and Build

• Construction: Lightweight and durable, with an unobtrusive headband
• Microphone Boom: Flexible for precise positioning
• Color: Black
• Cable: 1.4 m (55″) cable with a locking 4-pin connector

Applications

• Live Sound: Ideal for vocalists, speakers, and theater performers who need hands-free operation
• Broadcast: Suitable for on-air talent and presenters
• Theater: Designed for actors and stage performers requiring discreet and reliable audio capture

Package Contents

• ATM75C Microphone: Headworn cardioid condenser microphone

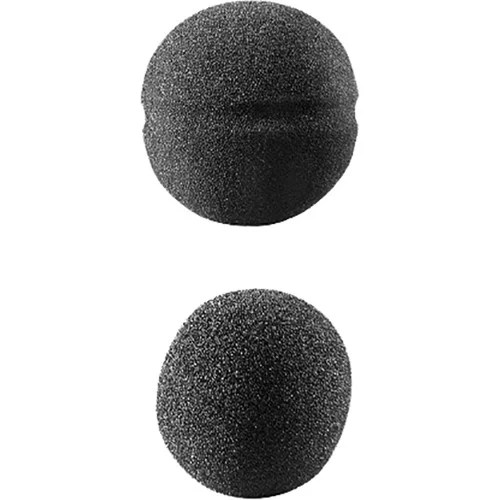

• Windscreen: To minimize plosive sounds and wind noise

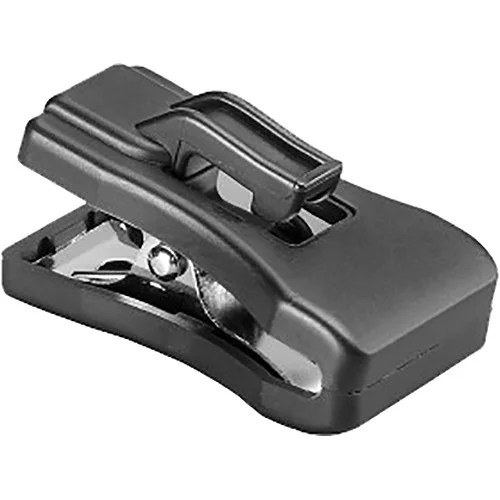

• Cable Clip: For secure and tidy cable management
• Documentation: User manual and warranty information

Warranty and Support

• Warranty: Typically 1-year limited warranty (verify with the manufacturer for specifics)
• Support: Available through Audio-Technica customer service and authorized dealers

Ordering Information

• Part Number: ATM75C
• Availability: Available through professional audio retailers and online stores
• Price: Varies by retailer and region

Additional Notes

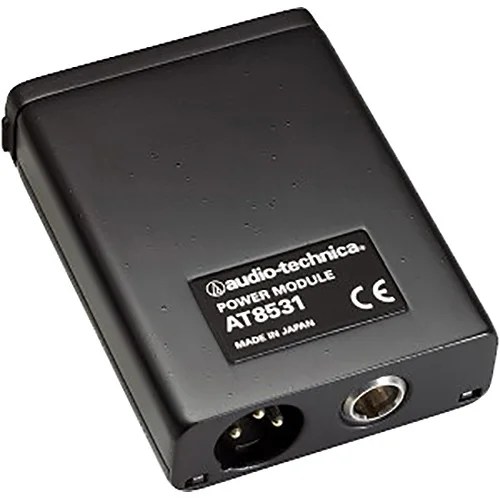

• Power Requirements: Requires 11-52V DC phantom power or battery power (compatible with Audio-Technica UniPak® body-pack transmitters)
• Compatibility: Primarily designed for use with Audio-Technica wireless systems, with potential adapters available for other systems

For more detailed specifications or to address specific needs, consult the Audio-Technica website or the product’s official datasheet provided by the manufacturer.
