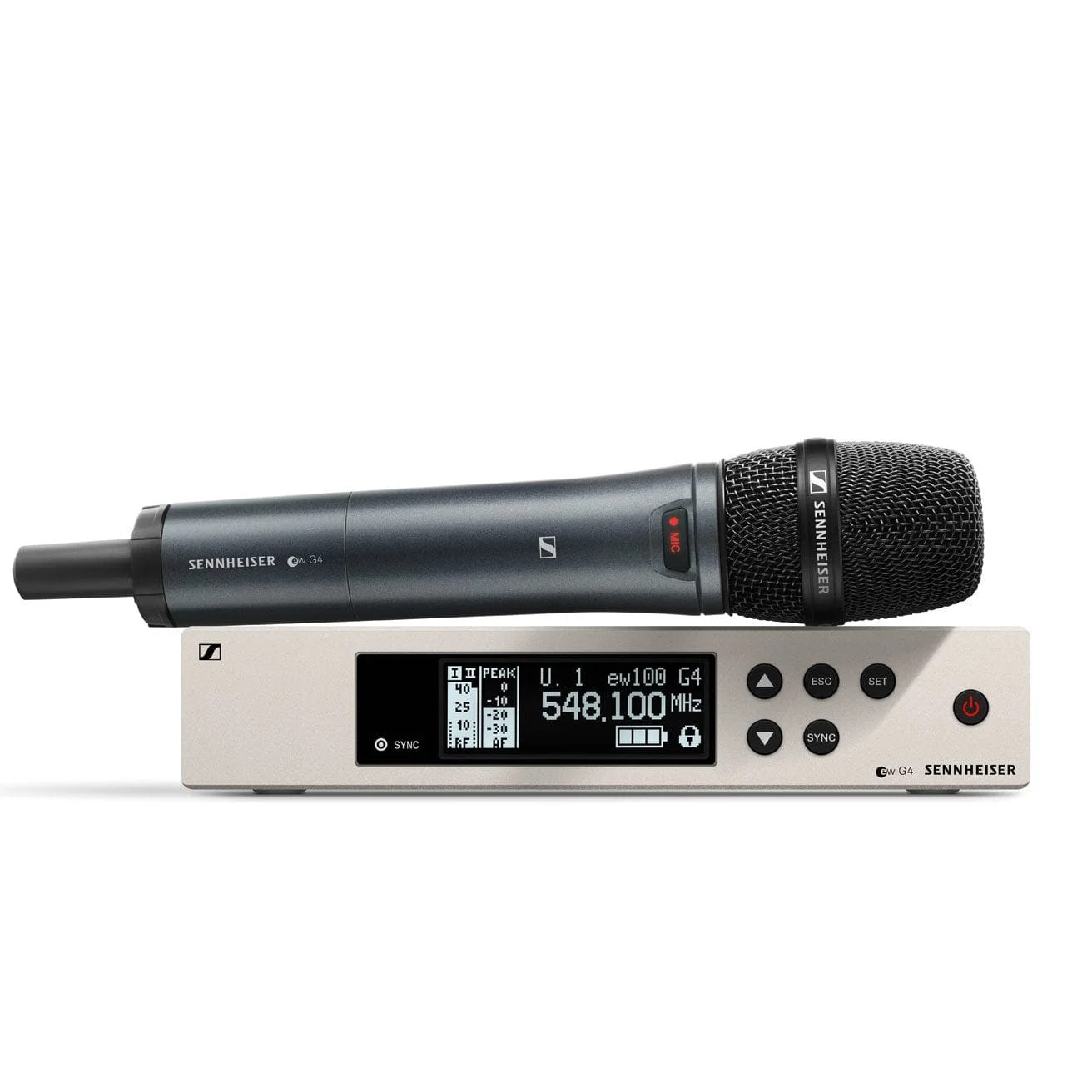

Sennheiser EW 100 G4-835-S Overview

The Sennheiser EW 100 G4-835-S is a versatile and reliable wireless handheld microphone system ideal for business and educational settings, houses of worship, theaters, and musical stages. This system combines robust features with ease of use, providing high-quality audio transmission.

Key Features:

• Handheld Transmitter:
  • Model: SKM 100 G4-S
  • Capsule: Interchangeable MMD 835 dynamic cardioid
  • Operation Time: Up to 8 hours on two AA batteries
  • RF Power Output: Fixed 30mW
  • Transmission Range: Up to 330 feet
  • Compatibility: Compatible with Evolution series beltpack transmitters and various mic capsules (e.g., MMD 835, MMD 845, MME 865, MMD 935, MMD 945, MMD 42)
  • Power Supply: Two AA batteries or optional rechargeable BA 2015 Accupack (with LA 2 charging adapter, available separately)
  • Features: Mute function, lock-out capability, backlit LCD, infrared sync with receiver
• Receiver:
  • Model: EM 100 G4
  • Type: True diversity, half-rack
  • Tuning Range: 46 MHz UHF with 1840 selectable frequencies
  • Display: High-contrast black and white LCD with streamlined menu system
  • Frequency Banks: 20 fixed frequency banks with up to 12 compatible presets each, 1 user bank with 12 programmable frequencies
  • Equalizer: Adjustable output with bass and treble control
  • Output Levels: Adjustable range of 48 dB
  • Audio Outputs: Balanced XLR and unbalanced 1/4″ outputs
  • Additional Features: HDX compander technology, built-in guitar tuner, rackmount kit included
• Multi-Channel Setup:
  • Networking Ports: Two RJ10 ports for daisy-chaining up to 12 receivers
  • Easy Setup Function: Quick multi-channel frequency setup
  • Manual Setup: Expandable up to 20 receivers
  • Included Cable: RJ10 cable
• System Expansion:
  • Antennas: Detachable BNC antennas for up to four receivers; A 1031-U omnidirectional or A 2003 UHF directional antennas available for extended range and reduced interference
  • Active Antenna Splitter: ASA 214 (available separately) for larger setups
• Additional Functionality:
  • Bodypack Transmitter: Optional bodypack transmitter with lavalier and headset mic options
  • Lavalier Mics: ME 2-II and MKE 2 for clear spoken-word applications
  • Headset Mic: ME 3-II for comfortable, durable use
  • Instrument Cable: Ci 1 for connecting bodypack to instruments

The Sennheiser EW 100 G4-835-S provides a reliable, high-performance solution for professional audio applications, featuring flexible operation and extensive compatibility options for various needs.
