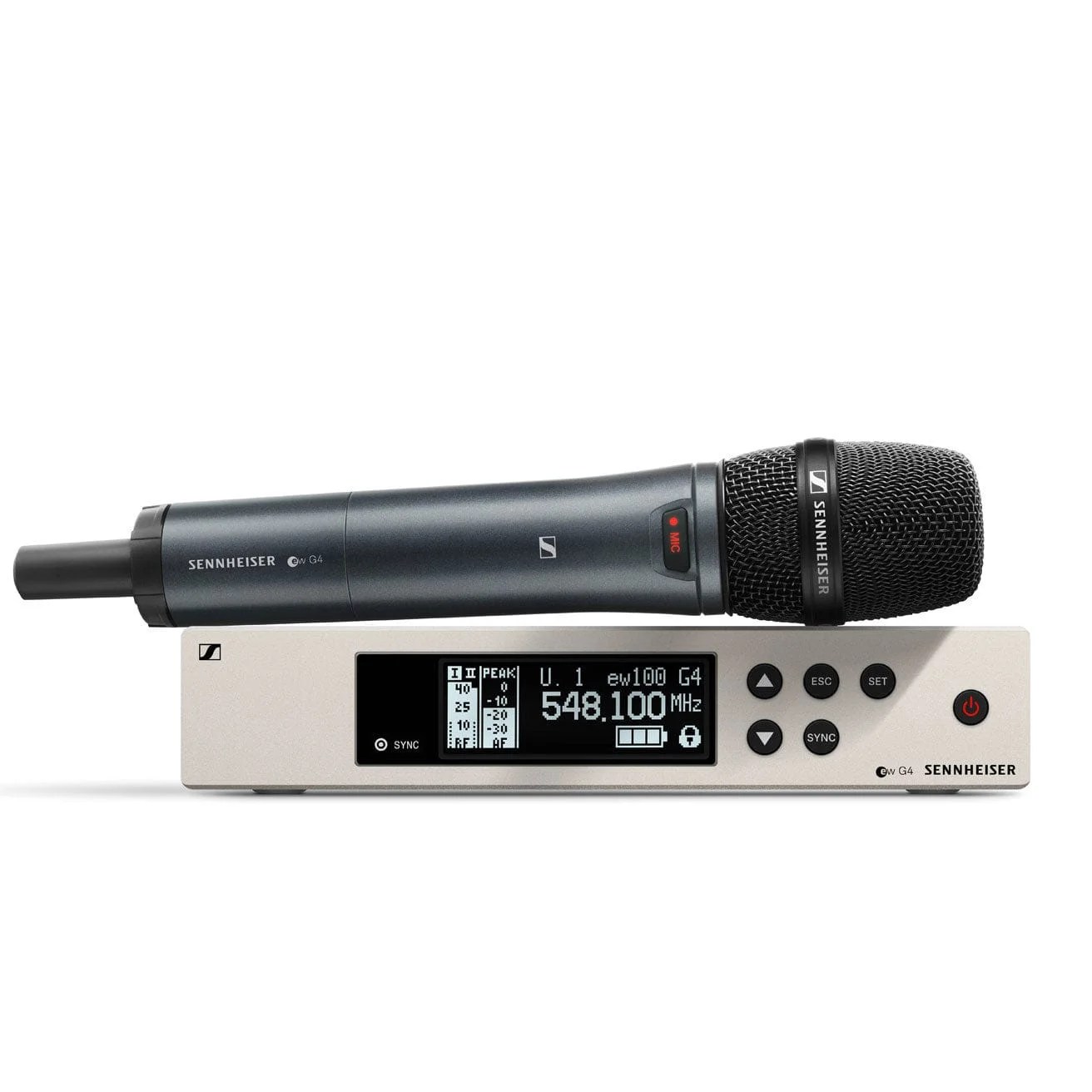

Sennheiser EW 100 G4-865-S Wireless Handheld Microphone System

The Sennheiser EW 100 G4-865-S is a reliable and high-quality wireless handheld microphone system designed for professional use in business and educational settings, houses of worship, theaters, and live stages.

Key Features:

• True Diversity Receiver: The half-rack EM 100 G4 receiver features a rugged, full-metal chassis with true diversity reception, ensuring stable RF performance even in challenging environments. The auto-scan function searches a wide 46 MHz UHF tuning range with 1840 selectable frequencies to find a clean, interference-free channel.
• SKM 100 G4-S Handheld Transmitter: Includes the SKM 100 G4-S handheld transmitter with an interchangeable MME 865 condenser supercardioid microphone capsule, ideal for clear and present vocals. The transmitter offers up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330′.
• User-Friendly Interface: The handheld transmitter features a mute function and backlit LCD for easy visibility in dimly lit environments. It syncs to the receiver via infrared with a simple press of the Sync button.
• Interchangeable Capsule Design: Compatible with various optional dynamic and condenser microphone capsules (sold separately), including models like MMD 835, MMD 845, MMD 935, MMD 945, and more, catering to different sound requirements and environments.
• Easy-to-Operate Receiver: The EM 100 receiver boasts a high-contrast LCD with a streamlined menu system for quick setup and monitoring. It supports 20 fixed frequency banks with up to 12 compatible frequency presets per bank, plus 1 user bank for personalized settings.
• Advanced Features: Includes Sennheiser’s proprietary HDX compander technology for clear audio transmission, built-in equalizer for frequency response adjustment, and an adjustable output level range of 48 dB. It also features a built-in guitar tuner for added convenience.
• Flexible Connectivity: Offers balanced XLR and unbalanced 1/4″ outputs on the receiver, with a rackmount kit included for easy installation. Universal power supply with multiple adapter plugs (EU, US, UK, Korea, Australia, China) ensures worldwide compatibility.
• Expandable System: Two RJ10 data networking ports allow daisy-chaining of up to 12 receivers for multi-channel setups, with an Easy Setup function for quick frequency assignment. Expandable to accommodate up to 20 receivers with manual frequency setup.
• Enhanced Performance Options: Detachable antennas with BNC sockets support connection of up to four EM 100 receivers to a single pair of remote antennas using the ASA 214 active antenna splitter (sold separately).

Specifications:

• Frequency Range: UHF, 46 MHz bandwidth, 1840 selectable frequencies
• Transmission Range: Up to 330′
• Battery Life: Up to 8 hours on two AA batteries
• Capsule Options: Interchangeable with various dynamic and condenser mic capsules
• Connectivity: Balanced XLR, unbalanced 1/4″ outputs
• Compatibility: Compatible with EW 300/500 systems, and backward-compatible with previous evolution systems (G4/G3/G2/G1)

The Sennheiser EW 100 G4-865-S wireless handheld microphone system combines ease of use, robust construction, and superior audio performance, making it an ideal choice for professional applications requiring reliable wireless transmission and pristine vocal reproduction.
