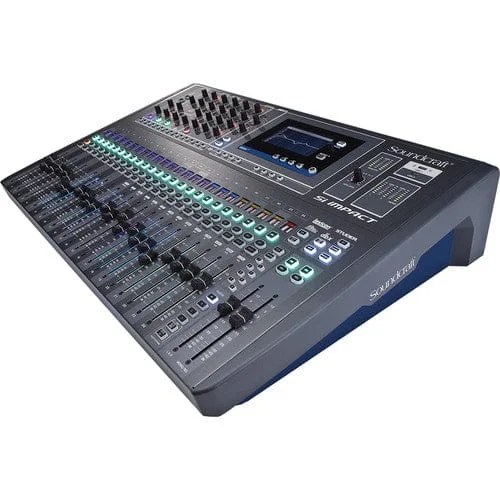

Si ImpactThe Soundcraft Si Impact is a 40-input digital mixing console and 32-in/32-out USB audio interface that supports remote iPad mixing using a proprietary app. The console is designed to be as simple as an analog mixer, but offers workflow enhancements such as the FaderGlow system, which illuminates each fader track in different colors to provide at-a-glance status information on precisely what the fader is controlling.
Soundcraft SI Impact Specs
Mixer
Number of Analog Input Channels
40
Signal Processing
Gain/Trim Range
Mic: -5 dB to 58 dB (in 1 dB Steps) Line: -10 dB to +16 dB
Gate Parameters
Threshold: -60 to -6 dBFS Depth: -60 to -3 dB Attack: .1 ms to 200 ms Release: 20 ms to 500 ms
Compressor Parameters
Threshold: -52 to -6 dBFS Ratio: 1:1 to 20:1 Attack: .1 to 200 ms Release: 5 to 900 ms Makeup Gain: 0 to 24 dB
Sidechain Filters
Gate: High-Pass: 22 Hz to 2.5 kHz Low-Pass: 160 Hz to 20 kHz
EQ Parameters
HF Shelf: ±15 dB at 800 Hz to 20 kHz MF Notch/Peak: ±15 dB at 22 Hz to 20 kHz, 6 to 0.3 Q LF Shelf: ±15 dB at 20 Hz to 500 Hz
Graphic EQ
28-Band 1/3 Octave, 31 Hz to 16 kHz
Filters
High-Pass: 40 Hz to 1 kHz
Audio Delay
Adjustable Up to 500 ms
Digital Audio
Sample Rates
AD/DA Conversion: Up to 200 kHz
Bit Depth
AD/DA Conversion: 24-Bit
DSP
40-Bit Floating Point
Jitter
± 7 ns
Word Clock Input
48 kHz ±7 Hz
Latency
< 0.8 ms (Mic Input to Line Output) < 0.6 ms (Analog Input to AES Output) < 0.9 ms (Stagebox Input to Stagebox Output)
Performance
dBFS Reference Level
+21.5 dBu = 0 dBFS
Frequency Response
Mic/Line Input: 20 Hz to 20 kHz ±1.5 dB
Max Input Level
Mic Input: +22 dBu Line Input: +22 dBu
Output Level
Mix Output: +21.5 dBu (2901653168)
Headphone Output Power
300 mW into 150 Ohms
I/O Impedance
Mic Input: 3 Kilohms Line Input: 10 Kilohms Output: 150 Ohms (Balanced) 75 Ohms (Unbalanced) Word Clock Output: 50 Ohms Word Clock Input: 47 Ohms AES3 Output: 110 Ohms
Crosstalk
Adjacent Channels: < 120 dB Adjacent Inputs: -100 dB at 1 kHz -85 dB at 10 kHz
CMRR
-80 dBu at Max Gain
EIN
-126 dBu at Max Gain (2901653041)
Noise Floor
< -86 dBu (at Unity Gain)ÂÂ
THD
< 0.01%ÂÂ
Power
AC Input Power
88 to 264 VAC, 50 / 60 Hz
Power Consumption
130 W (Maximum)
Physical
Operating Temperature
41 to 113°F / 5 to 45°C
Operating Humidity
0 to 90%
Storage Temperature
-4 to 140°F / -20 to 60°C
Dimensions
6.3 x 29.5 x 19.7″ / 160 x 750 x 500 mm
Weight
44.1 lb / 20 kg
Packaging Info
Package Weight
53 lb
Box Dimensions (LxWxH)
35.5 x 26.5 x 12.5″
Additional information
Weight
48.4 lbs
Dimensions
34 × 25.4 × 11.7 in
