Product Description:

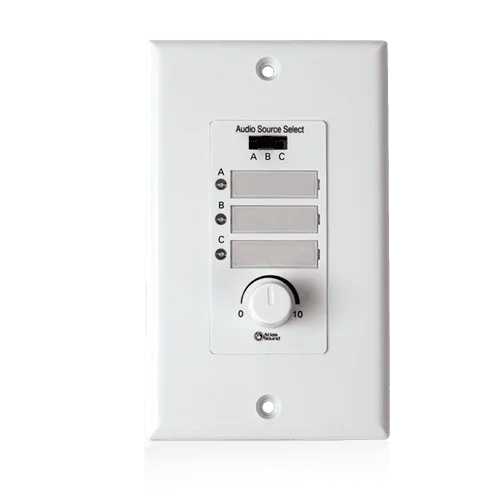

AtlasIED WPD-MIX42RT Wall Plate Remote Control

The WPD-MIX42RT is a decor-style wall plate designed for remote activation of the TSD-MIX42RT mic/line mixer. It features an audio source slide selector and a source volume control, providing convenient control over audio input and output levels. An LED indicator clearly displays the selected audio source and its active status.

This unit is designed to fit into a standard single-gang electrical outlet and uses an 8-conductor interface connection, including a 4-position removable Phoenix connector and dual 2-position Phoenix-style connectors. When connected to the TSD-MIX42RT mixer, the WPD-MIX42RT also supports Juke Box Override functionality, ensuring any page through the system overrides the selected source for clear communication.

Key Features:

• Remote activation and control for Atlas TSD-MIX42RT mic/line mixer
• Audio source slide switch for input selection
• Volume control via an onboard 10kΩ potentiometer
• LED indicator for source selection and system status
• 8-conductor interface connection with Phoenix connectors
• Fits standard single-gang electrical outlet
• Supports Juke Box Override for prioritized paging

The WPD-MIX42RT provides a simple yet effective way to remotely control audio sources and volume levels, making it a valuable addition to professional audio systems.
