Yamaha AG03MK2 Overview

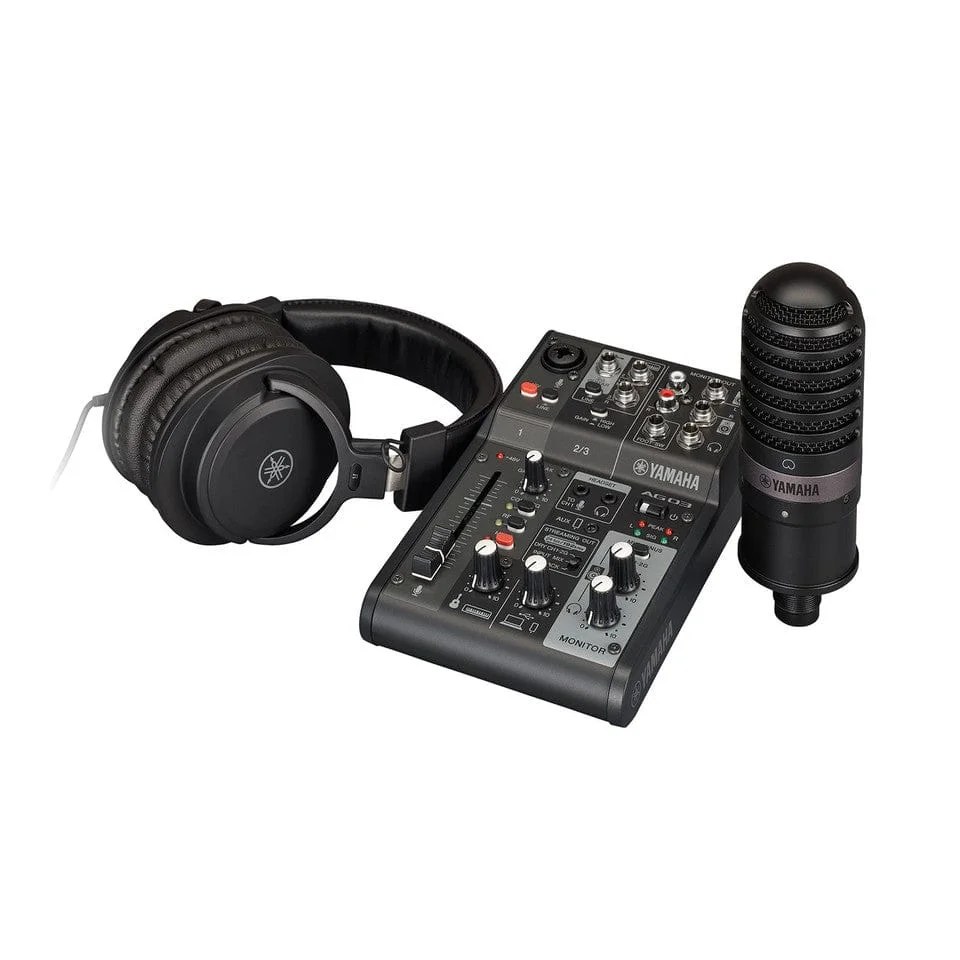

The AG03MK2 LSPK (Live Streaming Package) is a full-streaming setup that includes, and centers around, an AG03MK2 3-channel mixer— the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.

Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.

Specifications

Outline

• Input Channels
  • Mono[MIC/LINE]: 1 – Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8″) stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
  • Stereo[LINE]: 1 – Stereo Line / Guitar Input (Mono)
  • Smartphone: 1 – 4-pole mini input/output (TRRS)
  • USB: 1
• Output Channels
  • PHONES: 1 – PHONES / HEADSET PHONES *Cannot be used simultaneously
  • Smartphone: 1 – 4-pole mini input/output (TRRS)
  • MONITOR OUT: 2 – L/R Stereo: Phone, RCA
  • USB: 1
• Bus: 1 Stereo
• Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
• On-board processors: DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
• USB
  • USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
  • USB DC Power input: 1 – Type-C, 5 V DC, 900 mA

General specifications

• Power requirements: 5 V DC, 900 mA
• Power consumption: Max. 4.5 W
• W: 126 mm (5.0″)
• H: 63 mm (2.5″)
• D: 201 mm (7.9″)
• Net weight: 0.8 kg (1.8 lbs)
• Included Accessories: USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
• Others: Operating Temperature: 0 to + 40℃

• Microphone
• Microphone Unit: Back electret condenser type
• Polar Pattern: Cardioid
• Address Type: Side
• Frequency Response: 30 Hz – 20 kHz
• Max Input SPL: 130 dB (THD ≦ 1.0 ï¼… at 1 kHz)
• Sensitivity: -37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz)
• Connector: XLR
• Dimensions (Microphone Only): Ø55 x 166 mm (Ø2.2″ x 6.5″)
• Weight (Microphone Only): 0.4 kg (0.9 lbs)
• Included Accessories: Microphone stand adaptor x 1, Microphone pouch x 1, Owner’s manual, Technical specifications
