Description

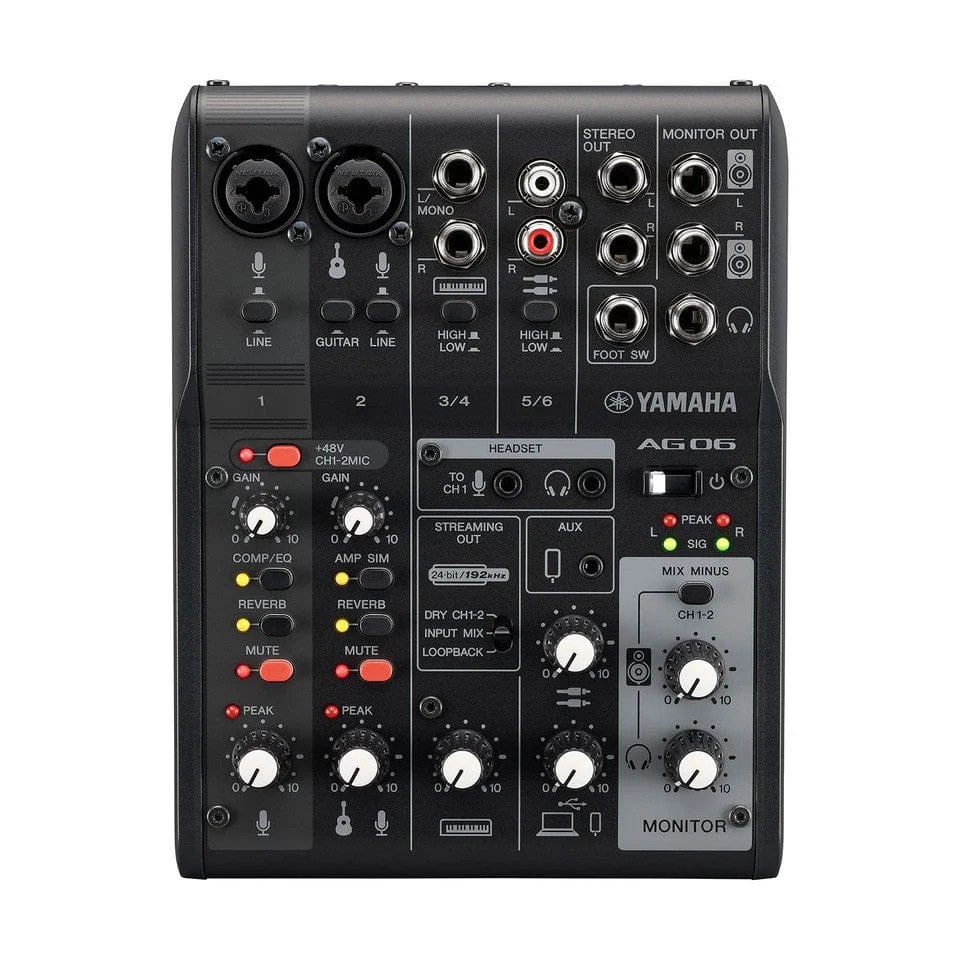

Two heads are better than one. The same can be said for microphone inputs, especially when it comes to live streaming. The AG06MK2 offers the same user-friendly configuration and operation that has become synonymous with the AG series, but also comes equipped with two phantom-powered mic inputs for condenser microphones. Combined with flexible connectivity, including an upgraded 4-pole mini I/O, the AG06MK2 opens a broader range of dialogue, interview, musical ensemble performance, or other streaming applications that the AG01 or AG03MK2 setups can’t cover.

Specifications

Outline

• Input Channels
  • Mono[MIC/LINE]: 2 – CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8″) stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
  • Stereo[LINE]: 2 – L/R Stereo: Phone, RCA
  • Smartphone: 1 – PHONES / HEADSET PHONES *Cannot be used simultaneously
  • USB: 1
• Output Channels
  • PHONES: 2 – PHONES / HEADSET PHONES *Cannot be used simultaneously
  • Smartphone: 1 – 4-pole mini input/output (TRRS)
  • MONITOR OUT: 1
  • STEREO OUT: 1
  • USB: 1
• Bus: 1 Stereo
• Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
• On-board processors: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
• USB
• USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
• USB DC Power input: 1 – Type-C, 5 V DC, 900 mA

General specifications

• Power requirements: 5 V DC, 900 mA
• Power consumption: Max. 4.5 W
• W: 152 mm (6.0″)
• H: 63 mm (2.5″)
• D: 201 mm (7.9″)
• Net weight: 0.9 kg (2.0 lbs)
• Included Accessories: USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
• Others: Operating Temperature: 0 to + 40 ℃
