Yamaha CXS15XLF Overview

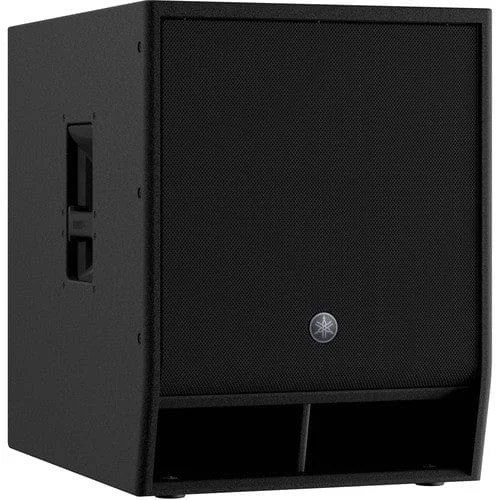

The black Yamaha CXS15XLF is a passive subwoofer expertly designed to extend the low-frequency response of full-range speakers, making it an ideal companion for any of the CZR-series passive loudspeakers. Here’s a detailed look at its key features and specifications:

• Power and Performance
  • Power Requirement: The CXS15XLF requires 800W to effectively drive its robust 15″ woofer, ensuring deep and impactful low-frequency performance.
  • Frequency Range: This subwoofer delivers a frequency response from 33 Hz to 150 Hz (-10 dB), providing rich bass that enhances overall sound quality.
  • Maximum SPL: With a maximum sound pressure level (SPL) of 130 dB, the CXS15XLF can easily fill larger venues with powerful low-end audio.
• Optimal Performance
  • DSP Recommendations: Yamaha suggests utilizing a DSP speaker processor or a power amplifier with integrated DSP, such as the Yamaha PX Series amplifiers. This integration allows for precise control of crossovers, limiting, and equalization to achieve the best possible sound performance.
  • Cardioid Configuration: Deploying two or more CXS15XLF subwoofers in a cardioid configuration (DSP dependent) effectively reduces stage volume while directing increased low-end output toward the audience, optimizing the listening experience.
• Flexible Connectivity
  • Neutrik speakON Connectors: The rear panel is equipped with three Neutrik speakON NL4MP connectors, configured with two input/parallel connectors for chaining multiple subwoofers and one output connector for easy setup with full-range CZR loudspeakers or for cardioid mode configurations.
• Mounting Options
  • Pole Socket: The CXS15XLF features both a 35mm pole socket and an M20 threaded socket, allowing for versatile mounting options to support full-range cabinets effectively.
