Description

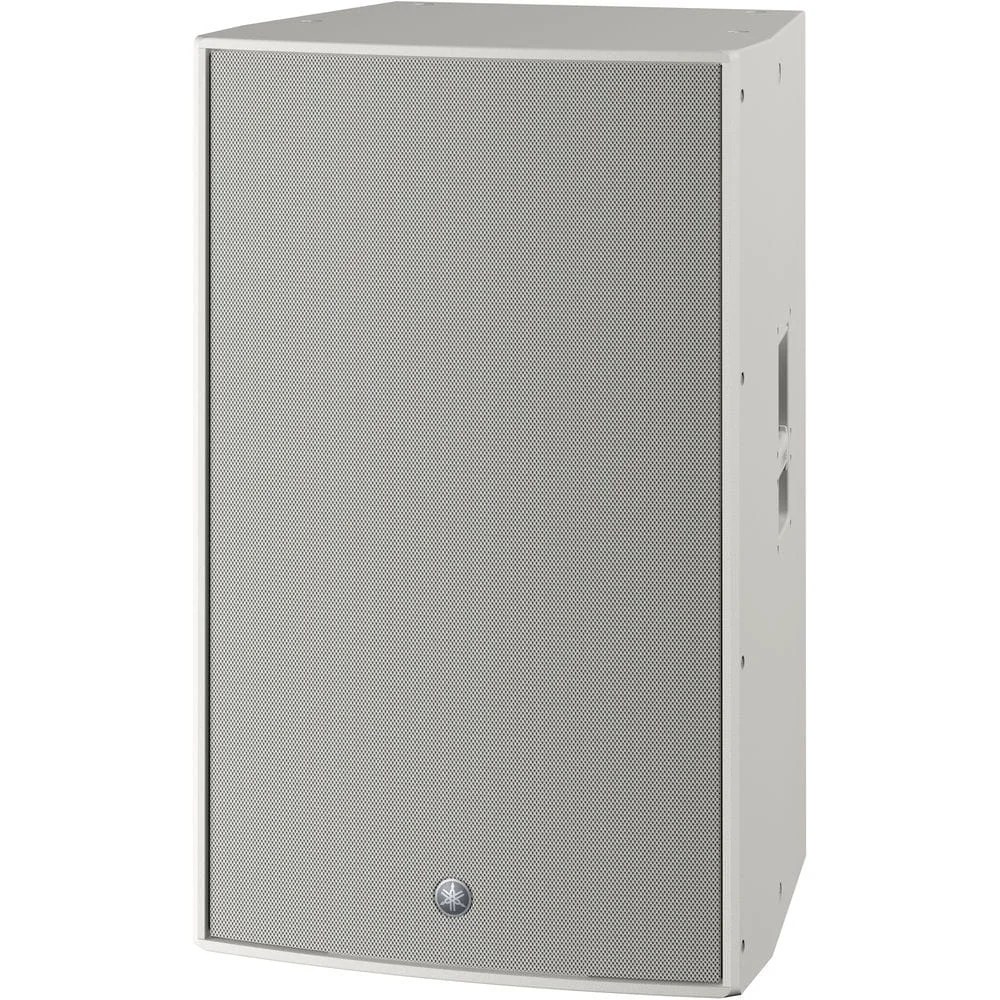

The white Yamaha DZR315-DW is a Dante-equipped, 3-way powered loudspeaker designed for main/FOH applications. The 2000W Class-D bi-amp powers the 15″ woofer, 8″ midrange driver, and 2″ compression driver, which combine to provide a frequency range of 31 Hz to 20 kHz (-10 dB) with a maximum SPL of 143 dB.
The on-board 96 kHz DSP processor utilizes Advanced FIR filters for the crossover network and corrective EQ. With the FIR filters, the DZR315-DW is able to produce a smooth frequency response for remarkable clarity and sound imaging without phase distortion. The onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and adjust PEQ, delay, and routing. The D-CONTOUR is an intelligent multiband compressor that ensures the DZR315-DW’s sound stays consistent and clear no matter how hard you drive them. The FOH/Main mode boosts the lower frequencies to compensate for low-end that is typically lost when flying speakers.
Yamaha DZR315 Dante-Equipped Specs
PA Speaker
| Configuration | Active 3-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 2000 W Peak
950 W RMS |
| Amplifier Power Rating | LF:
1000 W Peak
850 W RMS
HF/MF:
1000 W Peak
100 W RMS |
| Amplifier Class | Class-D |
Drivers
| HF Driver | 1 x Titanium Compression Driver with 1″ / 25.4 mm Throat |
| HF Voice Coil | 2″ / 50.8 mm |
| MF Driver | 1x 8″ / 203.2 mm Cone |
| MF Voice Coil | 1.5″ / 38.1 mm |
| LF Driver | 1x 15″ / 381 mm Woofer |
| LF Voice Coil | 3″ / 76.2 mm |
| Magnet | HF:
Neodymium
MF:
Ferrite
LF:
Neodymium |
Performance
| Frequency Range | 31 Hz to 20 kHz -10 dB |
| Maximum SPL | 143 dB |
| Coverage Angle | 75° H x 50° V |
| Max Input Level | Line Input:
+24 dBu |
| I/O Impedance | Input:
20 Kilohms |
Connectivity
| Audio I/O | 2x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Input
2x XLR 3-Pin Male Balanced Output |
| Network I/O | 2x etherCON (Dante) |
| USB I/O | 1x USB-A (External Memory, Host Connection) |
Signal Processing
| Crossover | Low-Pass:
700 Hz (Active)
High-Pass:
2.5 kHz (Passive) |
| Maximum Sampling Rate | 96 kHz |
Power
| AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz |
| AC Power I/O | 1x IEC (Locking) |
| Power Consumption | 45 W (Idle)
150 W (1/8 Power) |
Physical
| Mounting | 16 x M10 Fly Point |
| Handles | 1x Each Side |
| Cooling | Fan (Variable Speed) |
| Construction Material | Plywood |
| Dimensions | 21.7 x 35.3 x 20.5″ / 550 x 897 x 520 mm |
| Weight | 91.7 lb / 41.6 kg |
Packaging Info
| Package Weight | 114 lb |
| Box Dimensions (LxWxH) | 40.25 x 26 x 25.25″ |
