Description

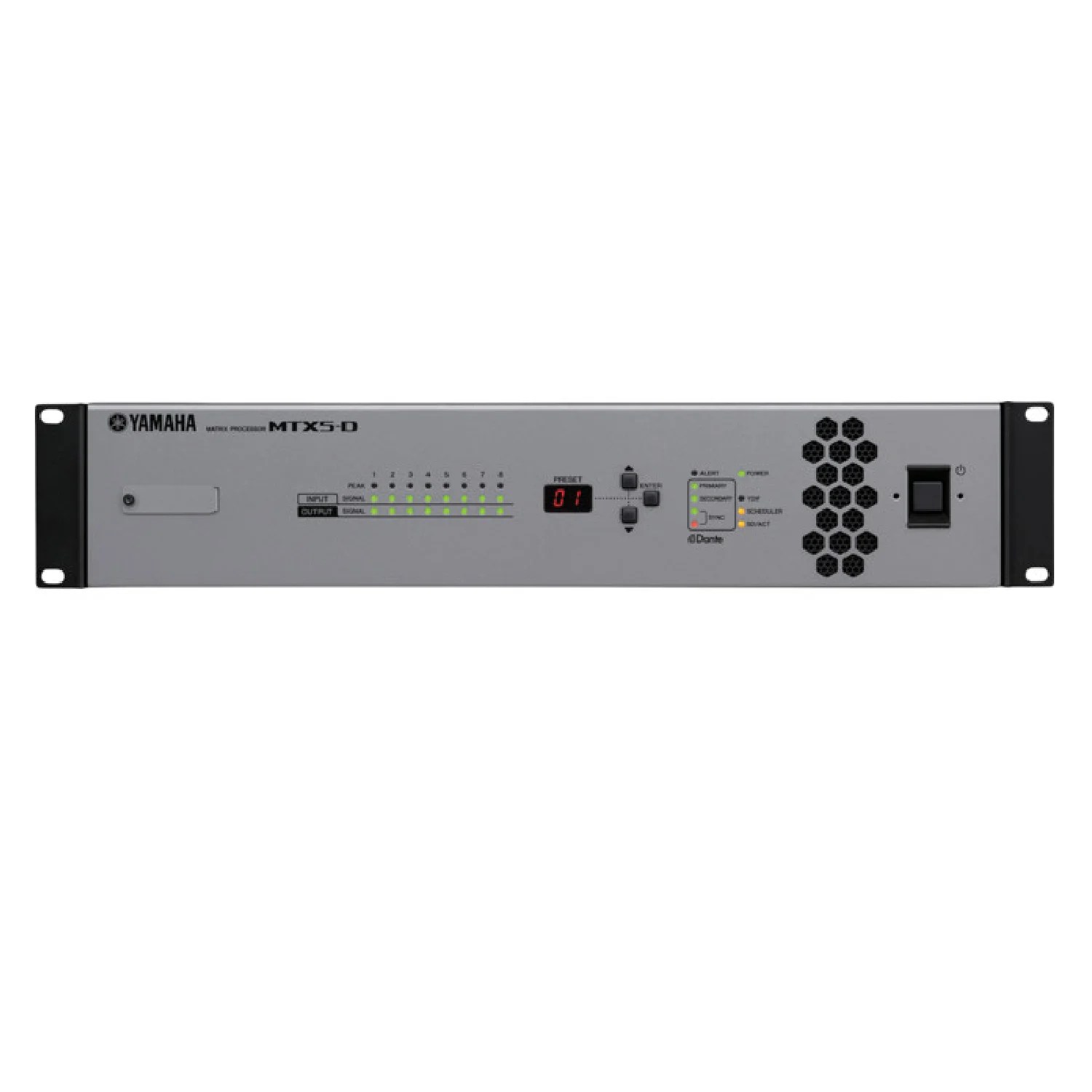

The Yamaha MTX5-D is a 34×16 matrix mixer and signal processor with 8-channel mic/line input and 8-channel analog output, 16-channel YDIF digital I/O, 16-channel Dante digital I/O, 1x MY card slot, and an SD card Slot for playback.

Designed primarily for multi-zone commercial installations, MTX Series matrix processors are equipped with flexible processing functions that are essential to a wide variety of applications such as retail stores, restaurant/bars or banquet rooms. Responsible for the primary processing functions at the heart of your system’s design, MTX processors allow you to configure, program, and manage your entire sound solution via the intuitive interface of the accompanying MTX Editor software application. The series is comprised of two models with varying DSP capacities and expansion capabilities, allowing MTX processors to meet the demands of a truly impressive range of commercial environments.

MTX Series processors come equipped with a variety of programmable features designed to maximize the performance of sound systems in commercial installations. With a focus on reliability and worry-free operation, functions such as Feedback Suppressor can automatically locate and eliminate acoustic feedback, while Auto Gain Control maintains a constant output level when input signals vary. For ancillary applications or environments that require public speaking, MTX processors feature a Priority Ducker function which automatically attenuates the output level a specified amount when the input signal from a separate sound source exceeds its threshold – as well as an Ambient Noise Compensator which adjusts system gain to compensate for fluctuating background noise levels. Combined with an onboard speaker processor for optimized speaker performance and sound quality, the MTX Series makes it easy to design and configure a complete audio system from input to output.

Yamaha MTX5-D Specifications:

• Memory bank: PRESET: 50
• Mixing Capacity:
  • Mixing Channel : 16 Mono + 3 Stereo + 2 Effect Return + 8 Insert
  • Output Busses: 16 Mono
• Input Channel Functions:
  • Mono CH : 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (only available in ch 1-8)
  • Stereo CH: 3-band PEQ, Comp, Auto Gain Control
• Output Channel Functions: Room Delay, Room EQ, Speaker Processor, X-Over (1-way,2-way), Delay, 6-band PEQ, Limiter
• Internal Processing: Priority Ducking, Ambient Noise Compensator
• Sampling frequency rate: 48kHz /44.1kHz
• Signal delay: Less than 3.0ms (AD-DA @48kHz)
• Total harmonic distortion: Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB)
• Frequency response: 20Hz to 20kHz, +0.5dB, -1.5dB
• Dynamic range: 107dB (Gain:-6dB)
• Hum & noise level: (20Hz to 20kHz), Rs=150 Ohms
• Phantom Power: +48V
• Crosstalk (@1kHz): -100dB
• Heat diffusion: 55.9kcal/h max
• Power requirements: AC100V-240V 50Hz/60Hz
• Power consumption: 50W
• Dimensions: 18.9″ W x 3.4″ x 13.9″ D
• Weight: 13.9 lbs
