Description

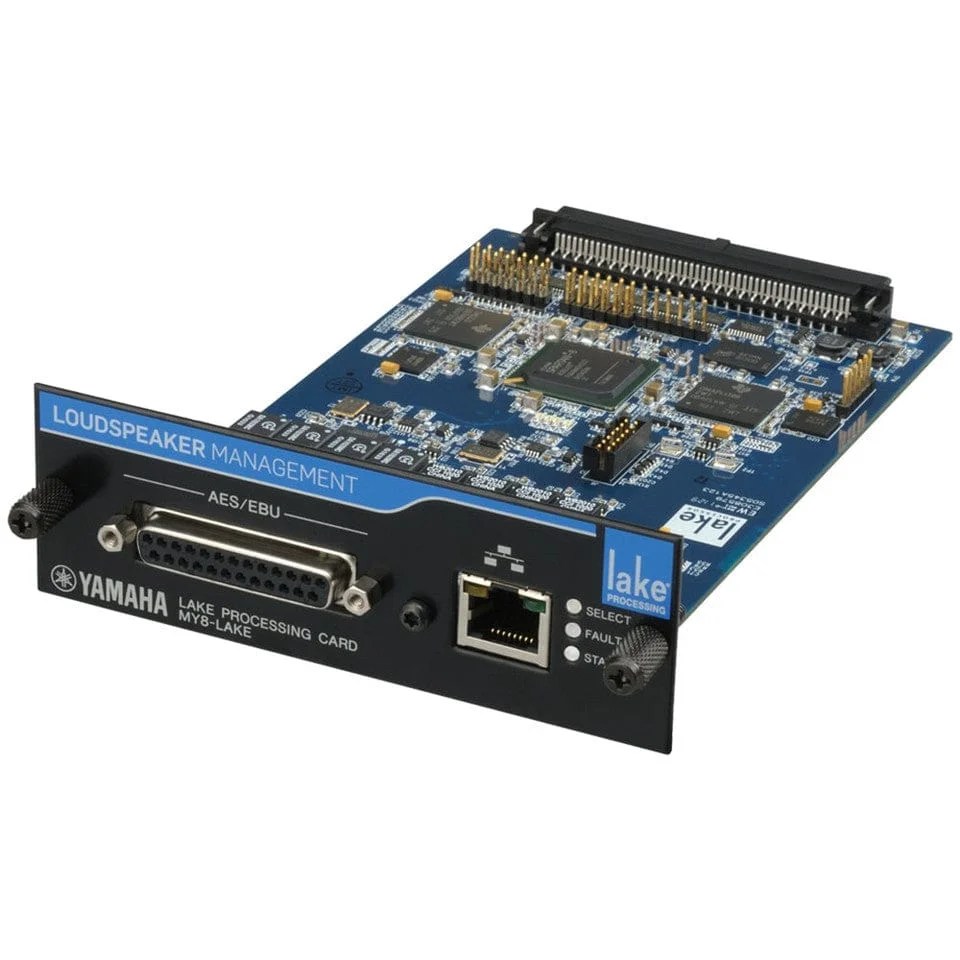

Lake Processing has become the de-facto standard for speaker processing in live sound applications. The MY8-LAKE is a DSP card for Yamaha digital mixing consoles, developed through close technological cooperation between Yamaha and Lake. The full power of Mesa EQ, Ideal Graphic EQ, and Linear Phase Crossover functions are packed into one compact card, providing immense processing capability and precise, intuitive control right at your fingertips. ÂÂ
Specifications
| General Specifications | ||
|---|---|---|
| Sampling Frequency | Mini-YGDAI I/F AES/EBU Input/Output | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| Internal Operating Frequency | 96 kHz | |
| Signal Delay | Best case (synchronous 96 kHz to synchronous 96 kHz) from AES input to AES output via module (Contour or Mesa) | 0.7185 ms |
| Power Requirements | maximum 3W | |
| Temperature range | Operating | 0 to 40 °C (32 to 104 °F) |
| Storage | -20 to 60 °C (-4 to 140 °F) | |
| I/O Characteristics | |||||
|---|---|---|---|---|---|
| Terminal name | Format | Datalength | Sampling Frequency | Level | Connector |
| AES/EBU (In/Out Ch 1-8) | AES/EBU | 24 bit | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (I/O individually selectable per Ch) | RS422 | D-sub 25 pin |
| NETWORK (Ethernet) | 10Base-T/100Base-T | – | – | – | RJ-45 |
