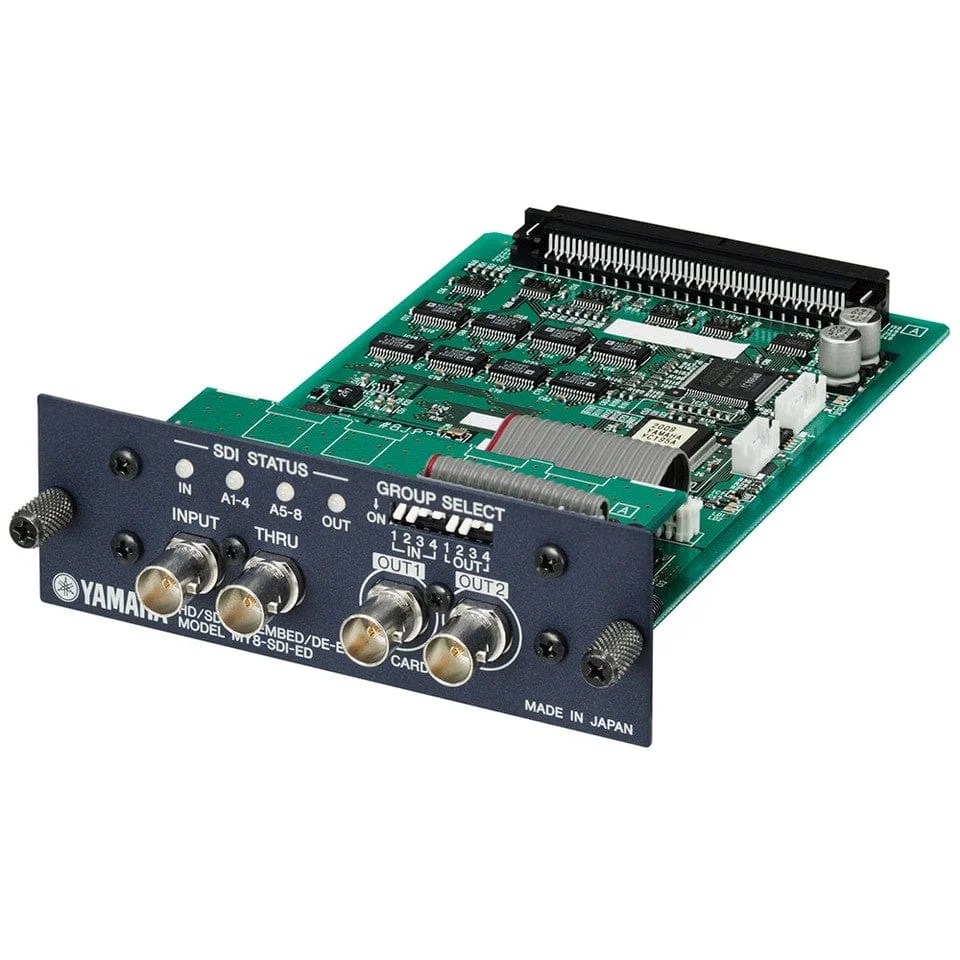

8-Channel HD-SDI/SD-SDI Embedder/De-embedder Interface Card
The MY8-SDI-ED is an HD-/SD-SDI embed/de-embed Mini-YGDAI card for use with compatible Yamaha professional audio equipment. The card enables you to de-embed up to two audio groups (four channels per group; total eight channels) to a host device, by selecting them from four audio groups (total 16 channels) that have been embedded into an SDI signal. This card also enables you to embed the audio output signals of a host device into one or two audio groups to be output as an HD-/SD-SDI signal.
Features
- 4x BNC connectors: 1x HD-/SD-SDI input, 2x HD-/SD-SDI output (same signal), 1x HD-/SD-SDI thru output (relocked)
- Can de-embed up to two of the 4 audio groups (4 channels per group: total 8 channels) embedded in a HD-SDI signal
- Can embed 2 audio groups into an HD-/SD-SDI signal for output
- LED audio status display
Specifications
| HD-SDI/SD-SDI I/O CHARACTERISTICS | |
|---|---|
| HD-SDI I/O Signal | SMPTE 292M (1.485 Gbps, 1.485/1.001 Gbps) |
| SD-SDI I/O Signal | SMPTE 259M-C (270 Mbps) |
| Resolution | 24 bit |
| Frequency | 48 kHz |
| Impedance | 75 Ω |
| Connector | Input: 1 x BNC Output: 2 x BNC (same signal) |
| Lines | Selected 2 audio groups of 4 channels; total 8 channels |
| HD-SDI/SD-SDI THRU OUTPUT CHARACTERISTICS | |
|---|---|
| SDI Output Signal | Reclocked thru output |
| Impedance | 75 Ω |
| Connector | 1 x BNC |
