Description

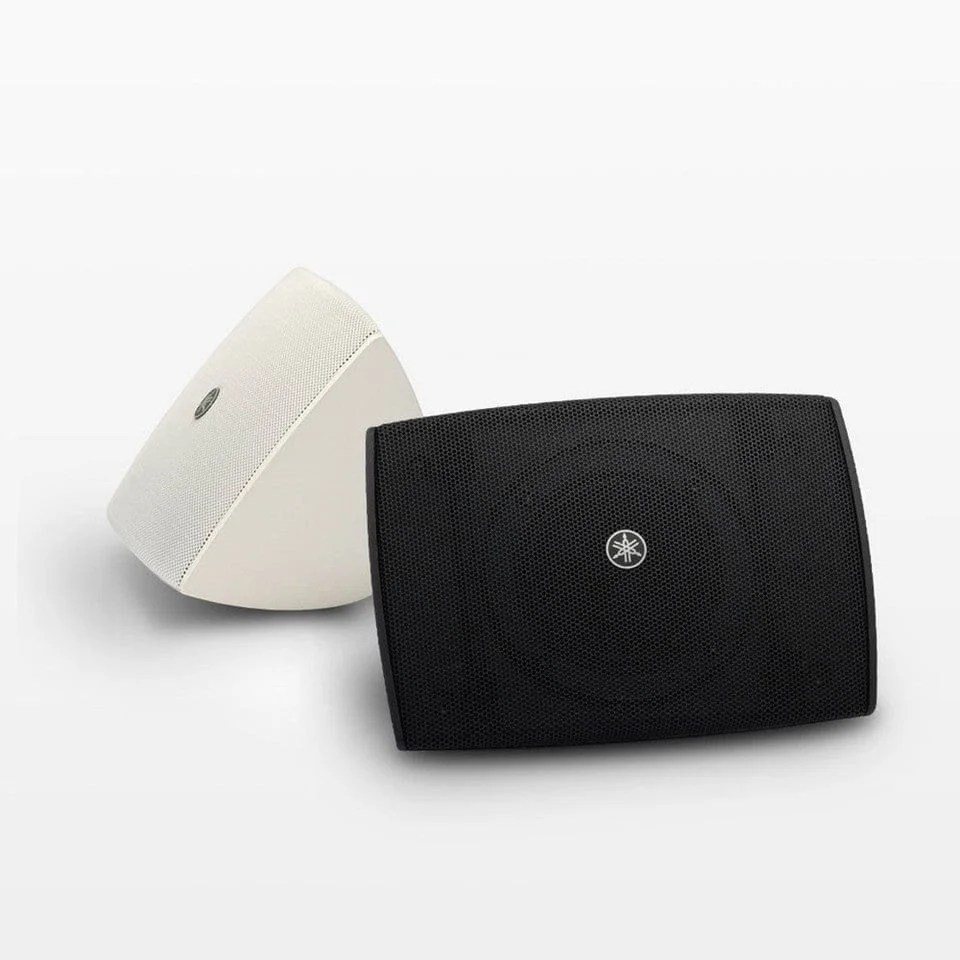

Surface mount speakers can play an integral role in both the visual and auditory atmosphere you choose to create in your commercial space. The sleek curves and attractive, minimalist design of Yamaha’s VXS3F speakers make them easily adaptable to any commercial environment seeking a unique, subtle complement to the overall aesthetic. And their performance is just as impressive; featuring a speaker unit optimally tuned for high-resolution music playback, and a flexible, intuitive design, these speakers offer everyone involved in the installation processâ€â€from installers and owners to end users  a simple, streamlined solution to easily integrate high-quality audio into an impressive variety of restaurant, retail, or professional environments. By combining this subtle, attractive design with the strict attention to sound quality that has earned Yamaha worldwide renown, VXS3F  surface mount speakers prove that style and substance aren’t always mutually exclusive.
Featurtes
3.5†full-range speaker units
Low-impedance model for small installations
Attractive, discreet design complements elegant décor
Dedicated design-enhancing bracket included
Acoustic design for sophisticated, natural reproduction
Individual speakers cover a wide angle
Paintable enclosures and grilles
Black and white models available
1.1kg (2.4 lbs)*, W 184mm x H 130mm x D 134 mm (W 7.3″ x H 5.1″ x D 5.3″)* *Including brac
Specifications
 General specifications | VXS3F | |
---|---|---|
Speaker type | Full-range, Acoustic suspension | |
Frequency range (-10dB) | 130Hz -20kHz | |
Nominal coverage | H | 150° |
V | 160° | |
Components | LF-HF | 3.5″ Cone |
Power rating | NOISE | 20W |
PGM | 40W | |
PEAK | 80W | |
Nominal impedance | 8Ω | |
SPL | Sensitivity (1W; 1m on axis) | 86dB SPL *1 |
Peak (Calculated) | 105dB SPL | |
I/O connectors | 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -) | |
Protection circuit | Load protection | Full-range power limiting for protecting network and transducers |
Finish | VXS3F: Black (approx. Munsell N3), VXS3FW: White (approx. Munsell N9) | |
Dimensions | W | 184mm (7.3″) *2 |
H | 130mm (5.1″) *2 | |
D | 94mm (3.7″) *2, 134mm (5.3″) *2,*3 | |
Net weight | 1.0kg (2.2lbs), 1.1kg (2.4lbs)*4 | |
Accessories | Bracket Gear, Bracket Base, Bracket Cover, Safety Wire | |
Packaging | Packaged in pairs | |
Certificate | UL1480, NFPA70, CE, RoHS | |
Transformer taps | 100V | – |
70V | – |
